Guyer Well Target Area

The 15km long Guyer Shear is located 12km west of Sunrise Dam gold mine.

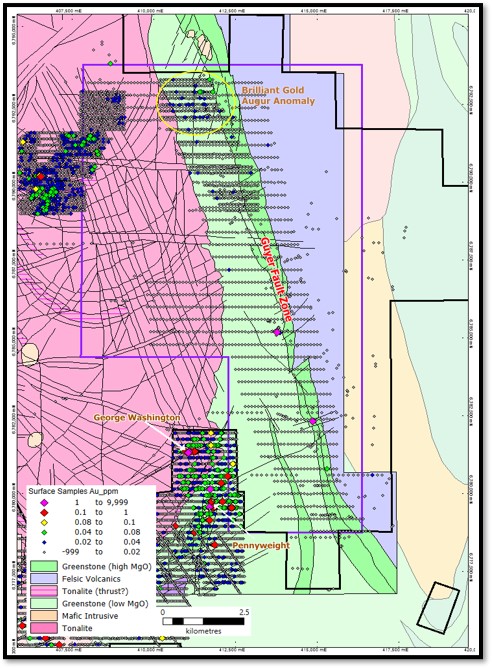

A combination of geophysics, field mapping and geochemistry demonstrates there is gold potential over 3 separate anomalous zones along the 15K long Guyer Shear: Guyer North, Central & South.

Work has identified multi-point Ultra Fine Fraction (UFF) gold anomalies with coincident elevated arsenic, bismuth, lead, silver and tellurium.

The Guyer Shear has been interpreted in the Deep Ground Penetrating Radar (DGPR) data, this correlates well with other geophysical and geochemical datasets.


Guyer Well Target Area

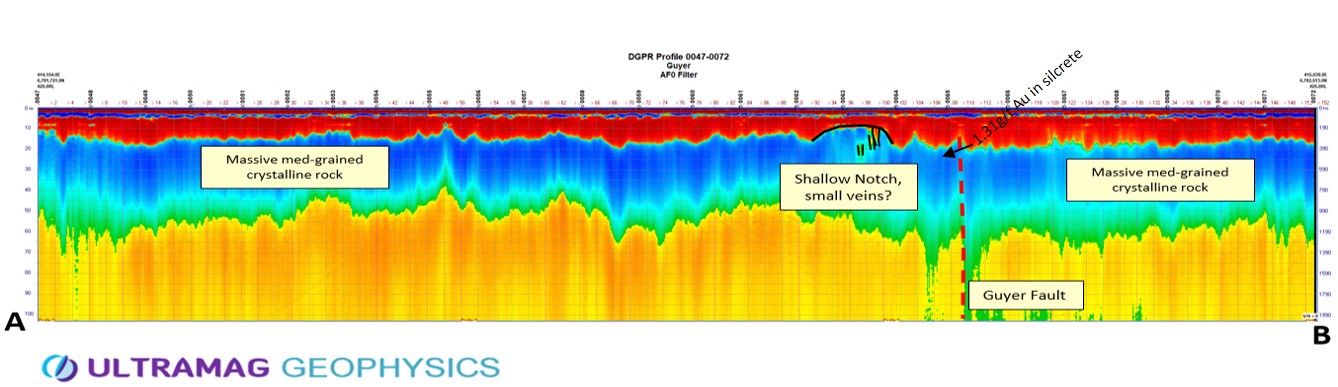

The DGPR section across the Guyer Shear.
